Transition Sentinel Carbon XT

Transition Sentinel Carbon XT
  • Color: Ti Grey

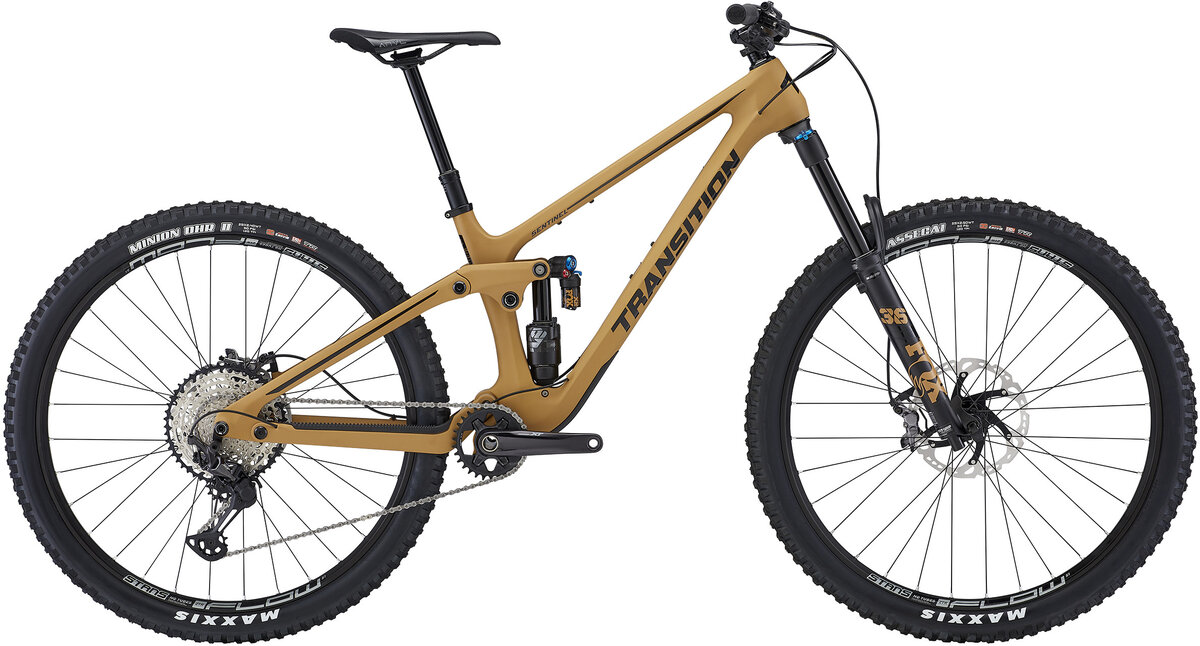

  • Color: Loam Gold
Please select options
The manufacture currently does not permit this item to be shipped, however it can be purchased online and picked up in the store. If this item is purchased in the store we can ship it anywhere you'd like.


The Transition Sentinel inspires confidence like you’re wearing full body armor. It’s forgiving do-it-all attitude truly blurs the lines between planted bottomless sender and playful poppy trail pony. Whether you’re chasing EWS dreams or just a weekend afternoon escape, it will bring out the best in you. So easy to get acquainted with you’ll find yourself sending lines, jumps and maneuvers you always felt were beyond your ability. Where before you went around, now you go over. Where you pushed up, now you pedal. Where you rolled, now you boost.

Transition SBG Geometry


SBG ensures the bike maintains low speed agility, front wheel traction, and proper rider weight balance while actually increasing confidence in steep terrain and at high speeds. With SBG, a slacker head tube angle is combined with a all new reduced offset fork standard, preventing the front wheel from being too far in front of the rider. This improves front to rear weight distribution on the bike, which is often out of balance on long and slack bikes. One of SBG's greatest benefits is that it creates a confident steering feel that adapts to wheel speed. More stability when going fast, more agility on technical slow speed manuevering as well as improved traction, control and confidence for any skill level of rider.






REACH 425 450 475 500
STACK 617 617 626 635
EFFECTIVE TT LENGTH 568 593 622 650
SEAT TUBE LENGTH 360 400 440 490
EFFECTIVE SEAT ANGLE 77.5 76.8 76.3 75.8
HEAD TUBE LENGTH 100 100 110 120
CHAINSTAY LENGTH 435 435 435 435
WHEELBASE 1193 1218 1247 1277
ESTIMATED BB HEIGHT 345 345 345 345
STAND OVER HEIGHT 685 695 700 715
FORK OFFSET 43 43 43 43
Transition Sizing Chart


Frame Sentinel Carbon 150mm
Fork Fox Float 36 Grip Performance 160mm Travel/44mm Offset
Headset FSA No.57E
Rear Shock Fox Float X2 Performance 2 Position
Rims/Wheels Stans Flow S1 Team
Tires Maxxis Assegai 3C EXO+ (29x2.5) / Maxxis Minion DHRII 3C EXO+ (29x2.4)
Crankset Shimano XT M8100 (30t/170mm)
Chain Shimano XT M8100
Rear Derailleur Shimano XT M8100
Rear Cogs Shimano SLX M7100 (10-51t)
Shifters Shimano XT M8100
Handlebars ANVL Mandrel Alloy 35 SM/MD (800x20) LG/XL (800x30) XXL (800x 40)
Tape/Grips Sensus Lite
Stem ANVL Swage (40mm)
Brakes Shimano XT M8120
Pedals N/A
Saddle ANVL Forge Cromo
Seat Post OneUp Dropper Post SM (150mm) MD (180mm) LG/XL/XXL (210mm)
Accessories & Extras Tubeless Valves & Stans Sealant (6oz)
Color(s) TI Grey, Loam Gold
Sizes SM, MD, LG, XL, XXL
Weight 31.3 lbs / 14.21kg (Size Md)

* Subject to change without notice.


Sentinel Tech Video

Part Numbers

Option MPN Store SKU
Ti Grey / Medium TRA34914654D
Loam Gold / X-Large TRA36947031L
