Details

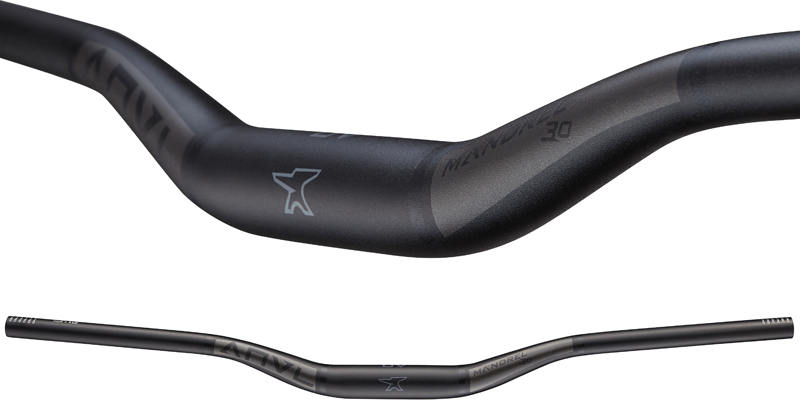

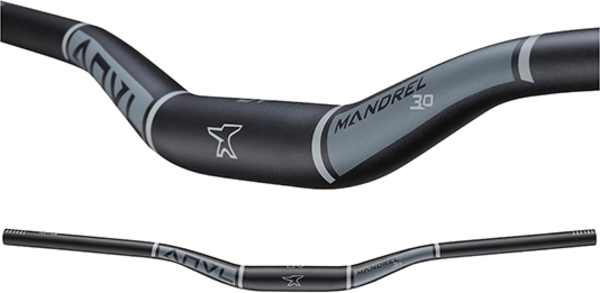

ANVL went to great lengths to make the tapers and bends of the Mandrel super smooth to create a 35mm bar that looks like a traditional 31.8 bar with the added benefit of stiffness and strength. Combine that with perfect sweeps that makes the Mandrel feel just as good as it looks. True-Sweep geometry means that you can now run the bar with the proper roll-back without compromising the geometry/feel of the bar. No more rolling the bar forward to achieve the proper geometry! The Mandrel is race light while also being stiff enough for aggressive trail riding, enduro, and downhill. All Mandrel handlebars are 800mm long and easily "cut to fit" your riding style.
MATERIAL: 7050 Alloy
LENGTH: 800mm
RISE: 20mm
SWEEPS: 6 Degrees Up, 7 Degrees Back
BAR BORE DIAMETER: 35mm
WEIGHT: 289g
MATERIAL: 7050 Alloy
LENGTH: 800mm
RISE: 30mm
SWEEPS: 6 Degrees Up, 7 Degrees Back
BAR BORE DIAMETER: 35mm
WEIGHT: 297g
MATERIAL: 7050 Alloy
LENGTH: 800mm
RISE: 40mm
SWEEPS: 6 Degrees Up, 7 Degrees Back
BAR BORE DIAMETER: 35mm
WEIGHT: 315g
Part Numbers
Option | UPC | MPN | Store SKU |
---|---|---|---|
STEALTH BLACK / 20mm Rise | 769165682550 | 03.18.24.2001 | |
STEALTH BLACK / 40mm Rise | 769165682635 | 03.18.24.4001 | |
ARCTIC GREY / 20mm Rise | 769165682567 | 03.18.24.2002 | |
ARCTIC GREY / 30mm Rise | 769165682604 | 03.18.24.3002 | |
ARCTIC GREY / 40mm Rise | 769165682642 | 03.18.24.4002 | |
MOLTEN ORANGE / 20mm Rise | 769165682574 | 03.18.24.2003 | |
MOLTEN ORANGE / 30mm Rise | 769165682611 | 03.18.24.3003 | |
MOLTEN ORANGE / 40mm Rise | 769165682659 | 03.18.24.4003 | |
TR BLUE / 20mm Rise | 769165682581 | 03.18.24.2004 | |
TR BLUE / 30mm Rise | 769165682628 | 03.18.24.3004 | ANV41380073E |
TR BLUE / 40mm Rise | 769165682666 | 03.18.24.4004 |
