Details

The Hard Hitting Powerhouse
Tackle all the technical terrain you can handle.

The Repeater Powertrain takes your eMTB experience to a whole new level. This system harmoniously integrates the most complicated moving parts on an eMTB to create a simple, worry-free, and exhilarating ride. With 170mm travel front and rear, user tuneable motor and shifting modes, and wheel size options, the Repeater PT is a groundbreaking eMTB designed to fulfill all of your powered riding dreams. Utilizing the 90nm Eagle Powertrain Motor by Brose, SRAM 720wh battery, SRAM T-Type AXS Transmission, and the SRAM Powertrain brain, the Repeater PT marks a giant leap in the integration of motor and drivetrain, allowing you to give your full attention to enjoying the ride while auto shift handles the rest.

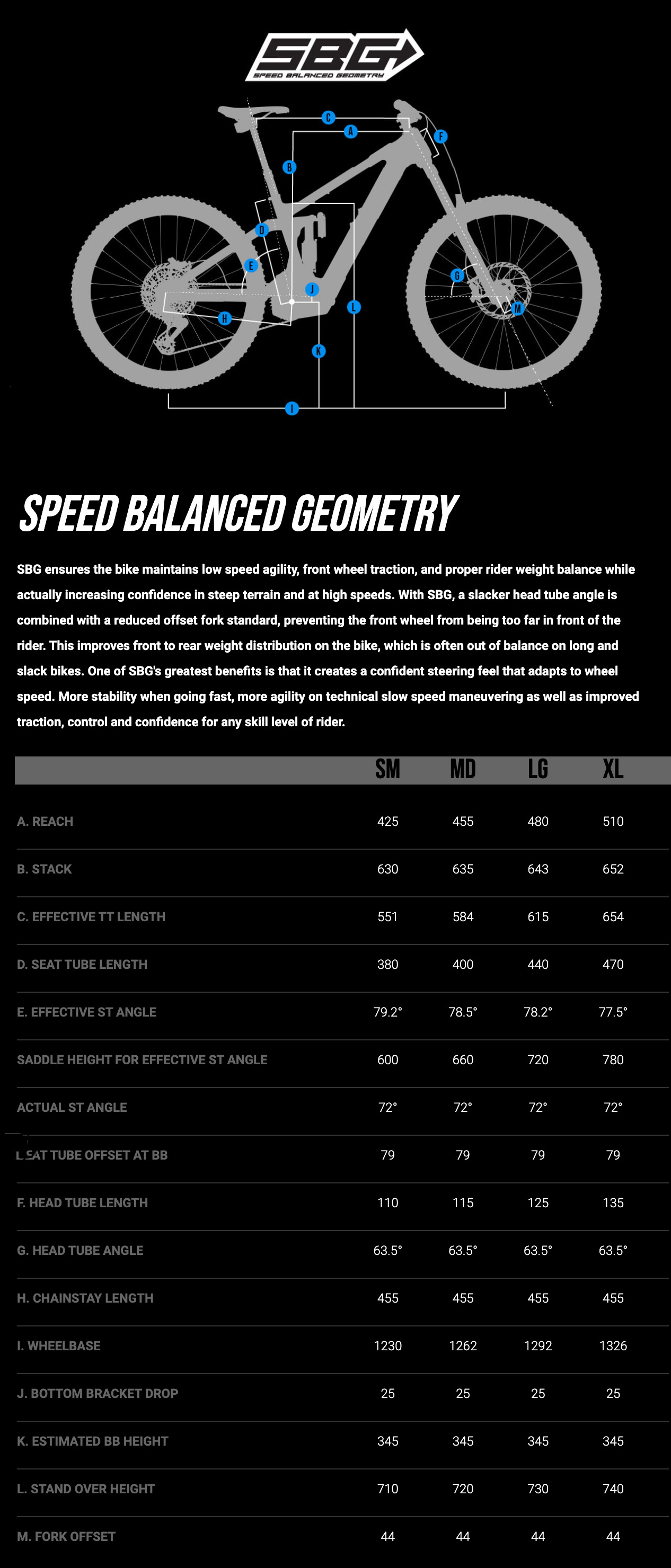

GEOMETRY

HUMAN SPECIFIC SIZING

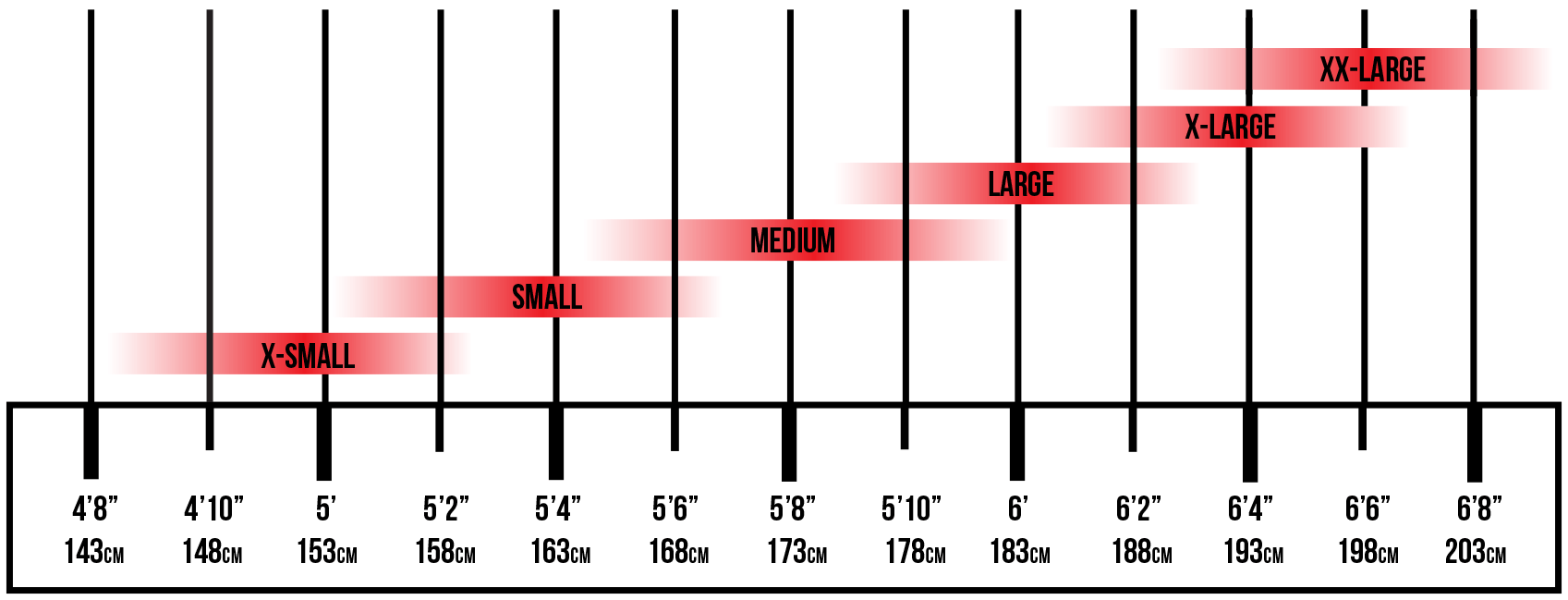

TRANSITION SIZING CHART

PEDALS SOLD SEPARATELY

Specs

Frame	Repeater PT Carbon 170mm
Fork	Rockshox ZEB Select (170mm)
Headset	FSA NO.55R/44
Rear Shock	Rockshox Vivid Select+ (205x65mm)
Rims/Wheels	DT Swiss H 1900 Spline
Hubs	DT Swiss Hybrid 370
Spokes	DT Swiss Hybrid 1
Tires	Schwalbe Magic Mary, Super Gravity, Ultra Soft (2.4), Schwalbe Big Betty, Super Gravity, Soft (2.4)
Crankset	SRAM GX Eagle E-MTB (160mm)
Chainwheel	SRAM XX T-Type Direct Mount 34t
Chain	SRAM GX Eagle Transmission
Rear Derailleur	SRAM GX AXS Eagle Transmission
Rear Cogs	SRAM XS 1275 T-Type (10-52t)
Shifters	SRAM POD Bridge MMX
Handlebars	ANVL Mandrel Alloy SM(800x20) MD/LG(800x30) XL(800x40)
Tape/Grips	ODI Elite Flow Lock-On
Stem	ANVL Swage (40mm)
Brakes	SRAM Code Bronze Stealth
Pedals	N/A
Saddle	SDG Bel Air 3
Seat Post	Rockshox Reverb AXS SM(150mm) MD/LG/XL(170mm)
Accessories & Extras	OneUp Components EDC Lite Tool SRAM Eagle Powertrain Charger SRAM AXS Battery Charger Tubeless Valves & Sealant
Color(s)	Bonfire Red, Graphite Grey
Sizes	SM, MD, LG, XL
Weight	52.9 lbs / 24.01 kg (Size MD)
