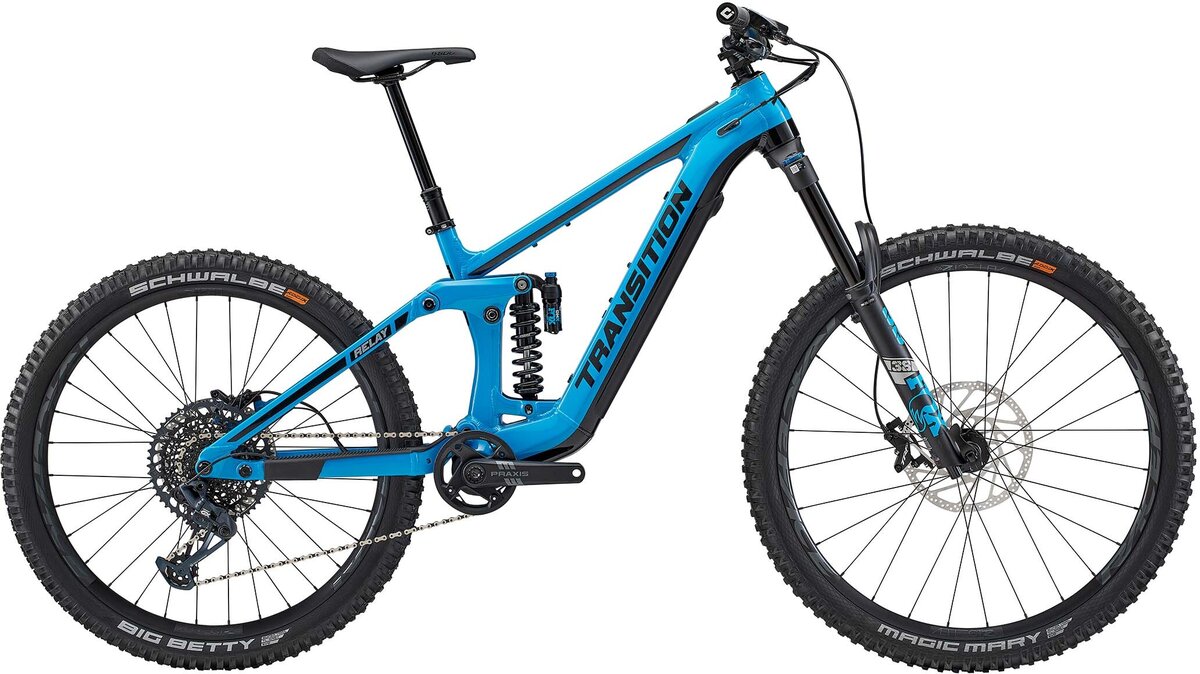

Living in uncharted territory, the Relay is a lightweight, long travel, modular mountain bike.
The guys at Transition have always wanted a bike that could provide both an electric and non-electric experience in one chassis. The Relay is light, efficient, and quiet. This provides a more intuitive and natural feel on trail than many would expect from an eMTB. The Relay is here and ready to meet all of your mountain biking needs. Going for a rip with friends on eMTB's? Power it up and head out. Going for a rip with some friends on mountain bikes? Simply remove the battery and hit the trail with no tools required. The Relay does it all.
Specs
Frame | Relay Alloy 170mm / Mixed Wheels (X-Small 27.5") |
---|---|
Fork | Fox Float 38 Grip 2 Performance Elite (170mm Travel) |
Headset | FSA No.55R |
Rear Shock | Fox DHX Coil Factory 2 Position (170mm Travel/205x65mm) |
Rims/Wheels | RaceFace Aeffect R |
Hubs | RaceFace Trace 28H |
Spokes | RaceFace 2.0/1.7/2.0 |
Tires | Schwalbe Magic Mary, Super Trail, Soft 2.4 / Schwalbe Big Betty, Super Trail, Soft 2.4 |
Crankset | Praxis Alloy ETOR (165mm, X-Small 160mm) |
Chain | SRAM GX Eagle |
Rear Derailleur | SRAM GX Eagle |
Rear Cogs | SRAM XG 1275 (10-52t) |
Shifters | SRAM GX Eagle Single Click |
Handlebars | ANVL Mandrel Alloy 35 XS/SM (800x20) MD/LG/XL (800x30) XXL (800x40) |
Tape/Grips | ODI Elite Flow Lock-On |
Stem | ANVL Swage (40mm) |
Brakes | TRP DH-R EVO |
Pedals | N/A |
Saddle | SDG Bel Air 3 |
Seat Post | OneUp Dropper Post |
Accessories & Extras | Fazua Charger, Tubeless Valves & Sealant |
Color(s) | TR Blue, Oxide Grey |
Sizes | SM, MD, LG, XL |
* Subject to change without notice.
Videos
Relay Tech Video
Unplug and Play on the Relay
Part Numbers
Option | MPN | Store SKU |
---|---|---|
TR Blue / Large | 01.23.11.5007 | TRA36424910E |
Oxide Grey / Medium | 01.23.11.5004 | TRA40995600Y |
